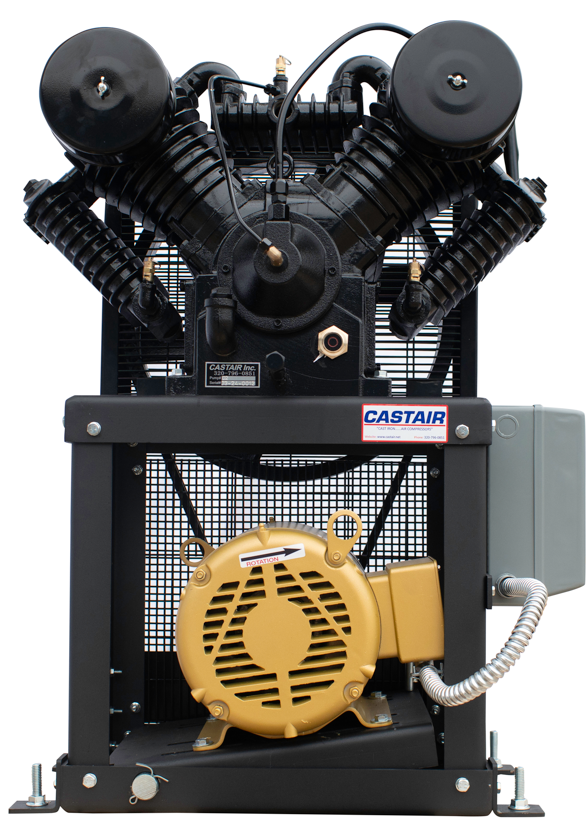

Tandem

HP	Phase	Pump  R.P.M.	CFM @  0-PSI	CFM@  175 PSI	LxWxH  Dimension	Tank Gal./Type	Wt.  Lbs.	Unit Model
10	1	767	44	35	85x28x57	120	1115	T 10112HC1
10	1	767	44	35	85x30x64	240	1465	T 10124HC1
10	1	420	44	35	85x28x57	120	1305	T 10112HC2
10	1	420	44	35	85x30x64	240	1655	T 10124HC2
10	3	767	44	35	85x28x57	120	1085	T 10312HC1
10	3	767	44	35	85x30x64	240	1435	T 10324HC1
10	3	420	44	35	85x28x57	120	1275	T 10312HC2
10	3	420	44	35	85x30x64	240	1625	T 10324HC2
15	3	895	64.8	49.6	85x28x57	120	1205	T 15312HC1
15	3	895	64.8	49.6	85x30x64	240	1555	T 15324HC1
15	3	585	70	56.2	85x28x57	120	1395	T 15312HC2
15	3	585	70	56.2	85x30x64	240	1745	T 15324HC2
20	3	758	90	70	85x28x57	120	1455	T 20312HC2
20	3	758	90	70	85x30x64	240	1805	T 20324HC2
20	3	570	90	70	94x28x57	120	1785	T 20312HC3
20	3	570	90	70	94x30x64	240	2135	T 20324HC3
25	3	898	110.4	90.6	85x28x57	120	1500	T 25312HC2
25	3	898	110.4	90.6	85x30x64	240	1850	T 25324HC2
25	3	680	110.4	90.6	94x28x57	120	2180	T 25312HC3
25	3	680	110.4	90.6	94x30x64	240	2530	T 25324HC3
30	3	795	123.4	100.4	94x28x62	120	1860	T 30312HC3
30	3	795	123.4	100.4	94x30x68	240	2210	T 30324HC3

Add (S) to model number for magnetic starter mounted and wired (i.e. T 10112HC1-S).

---

Options: Factory Mounted

*Low Oil Control	#6304x2M:
*Hour Meter 230 volt	#HRM75M:
*Electronic Auto Drain	#SDV03M:
*Dual Control (standard on C3)	#DC1x2M (C1):	#DC2x2M (C2):
*Intake Noise Silencers	#SA100x2M (C1):	#SA100x4M (C2, C3):
*Right from the Start Kit	#RFS001D (10hp):	#RFS002D (15 & 20hp):	#RFS003D (25 & 30hp):
Vibration Pads (set of 4)	#VP1004

*Beltguard aftercoolers	Installed On	CFM
#BGAC1x2M	10,15, & 20hp units	70
#BGAC2x2M	25 & 30 hp units	100

All Options: *Order all asterisk options and recieve %10 off options.

All options C1	All options C2	All options C3
#AOC1T	#AOC2T	#AOC3T
