Commercial / Garage

COMMERCIAL SERIES – Electric

Commercial

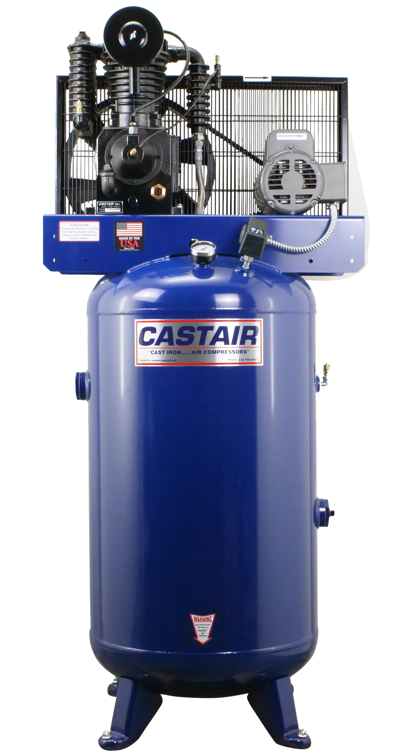

C516VA8
Commercial

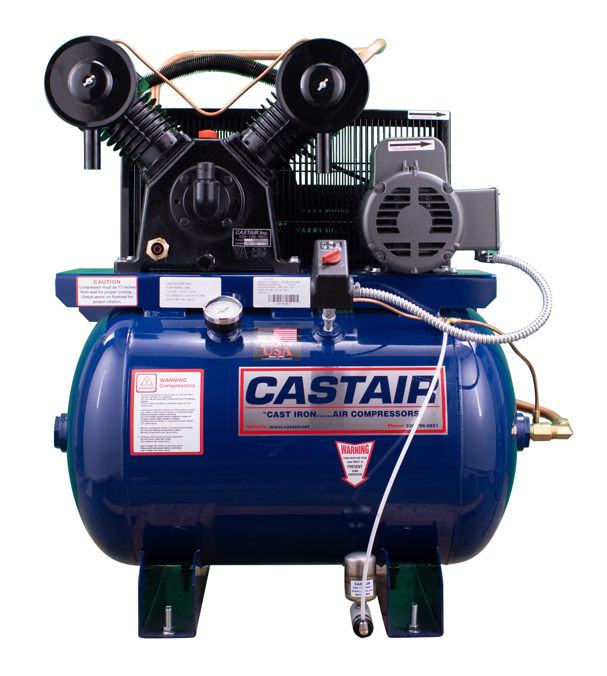

C513HA8
Commercial
C518VC1

1 PHASE – MOTOR 3450 R.P.M. WITH FULL 15% SERVICE FACTOR & OVERLOAD PROTECTION.

No magnetic starter required.

HP  Stage Tank Gal/Type Pump  R.P.M.  C.F.M.@  0-PSI  C.F.M.@  100 PSI  LxWxH  Dimension  Voltage Amps  WT.  Shipped  Unit Model
5  SINGLE  30 horiz.  1088  23.7  18.3  33x18x38  230/22  295  C513HA8
5  SINGLE  60 vert.  1088  23.7  18.3  34x20x68  230/22  335  C516VA8
5  SINGLE  80 vert.  1088  23.7  18.3  32x24x66  230/22  435  C518VA8
5  SINGLE  80 horiz.  1088  23.7  18.3  64x20x41  230/22  435  C518HA8
5  TWO  80 vert.  715  21.7  18.1  32x24x74  230/22  560  C518VC1
5  TWO  80 horiz.  715  21.7  18.1  64x20x48  230/22  560  C518HC1

GARAGE SERIES – Electric

Garage

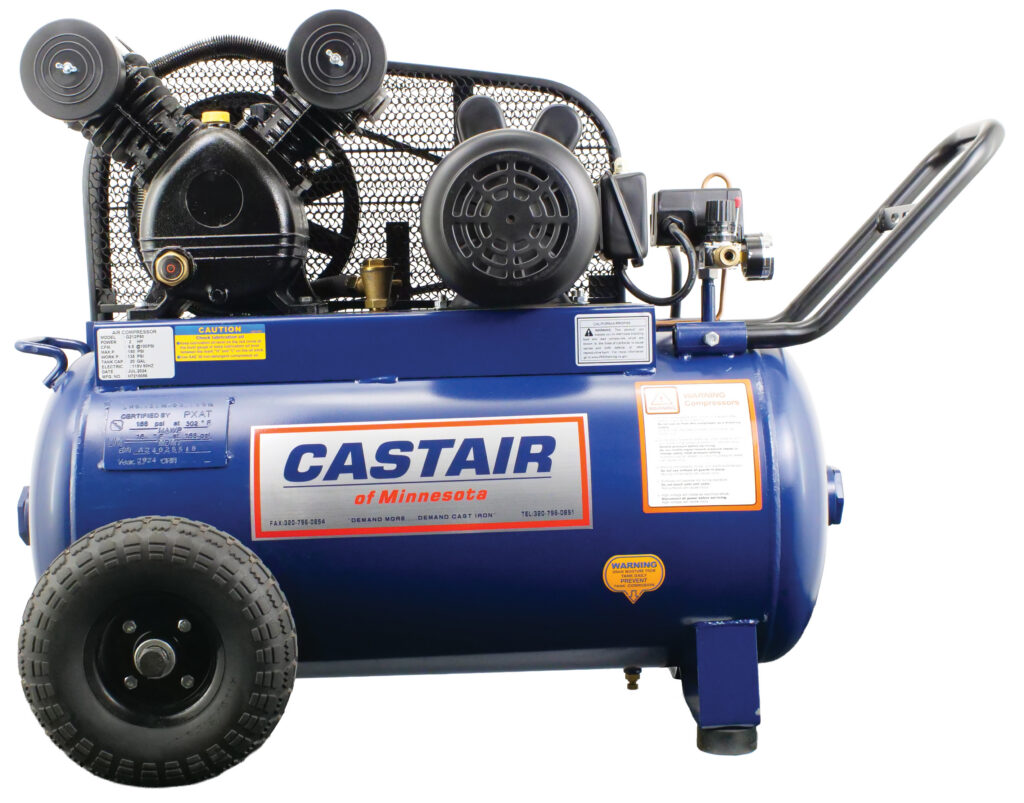

G212P50
Garage

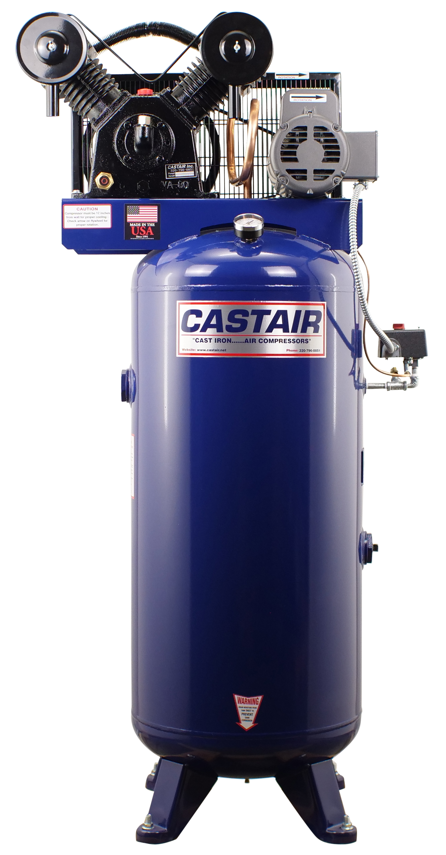

G3516VS75

1 PHASE – MOTOR 3450 R.P.M. WITH OVERLOAD PROTECTION – NO MAG. STARTER REQUIRED

HP  Stage Tank Gal/Type Pump  R.P.M.  C.F.M.@  0-PSI  C.F.M.@  100PSI  LxWxH  Dimension  Voltage Amps WT.  Shipped  Unit Model
1.5 SINGLE  15 v-port 1200  10.0 4.8  22x18x40  115/12  150  G15115VP30
2SINGLE 20 port. 1380 10.4 6.5 33x19x30 115/15 175 G212P50
3.5  SINGLE  60 vert.  1100  18.6  11.5  31x27x70  230/15  250  G3516VS75

All garage & commercial series pumps feature:

  • Slow R.P.M. oil lubed CAST IRON belt driven pumps for quiet operation & long life.
  • Automotive type filters/silencers with paper element provide clean intake air & quiet operation.
  • Easy to read sight glass to insure proper oil level at a glance.

All garage & commercial series units feature:

  • Powder coated ASME-tanks.
  • Four feet on all stationary models. *Rigid metal belt guards.
  • Copper discharge & unloader tube for strength & increased heat dissipation.
  • G212P50 has a mounted regulator with gauge & quick coupler.
  • Single stage factory set to shut off at 125 PSI. *Two stage factory set to shut off at 175 PSI.

All commercial series pumps feature:

  • Precision steel connecting rods with automotive type rod insert bearings at crankshaft & needle bearings at wrist pin for long service, life, & reliability.
  • Disc & spring valves for easy service, higher efficiency and reliability.
  • Pistons have 4-rings for higher efficiency & less oil carry-over.

All single stage pumps feature:

  • Smooth running v-twins for 360 deg. cooling around both cylinders (G3516VS75 is an inline twin).
  • Main bearings are automotive type ball bearings for superior crankshaft support.
  • Bleeder pressure switch for load-less starts.

All two stage pumps feature:

  • Tapered roller bearings at both ends of crankshaft for superior support & less friction.
  • Mechanical centrifugal unloader…for loadless start-up every time.

Options: Factory Mounted

Air Operated Auto Drain #ADVSM
*Auto Drain #SDV03M
*Silencer 1” #SA100M (C1)
*Right From the Start Kit #RFS001
*Belt Guard Aftercooler #BGAC1M
Vibration Pads 4x4x1” (set of 4) #VP1004
