SINGLE STAGE 125psi – DIRECT DRIVE – OIL LUBED – ELECTRIC 1725 R.P.M.
FEATURES
- Regulator w/gauge mounted & quick coupler.
- Up to 10 times the life of oil-less units.
- Fan cooled thermal overload protected motor.
- Filter/silencers provide clean air and quiet operation.
- Heavy duty pressure switch with on/off control & copper bleeder tube.
- Heavy duty oil lubricated with Cast Iron sleeve pump for long life *PD1006 oil-less.
- Finned copper discharge tube for strength & increased heat dissipation.
- ASME-safety valve installed, 8-gallon single tank units are non-ASME.
- Two piece connecting rod, independent wrist pin, & a real piston w/3-rings.
| HP | Voltage PH/AMPS | Tank Gal/Type | C.F.M. @ 0-PSI | C.F.M. @ 100 PSI | Pump R.P.M. | LxWxH Dimension | WT. Shipped | Unit Model |
| 3/4 | 12V/46A | 1.5 Port. | 3.3 | 1.4 | 3000 | 20x9x18 | 31 | PD1006 |
| 1.5 | 115/1/12 | 8/ Port. | 9.9 | 4.6 | 1725 | 24x14x25 | 75 | D1518P20 |

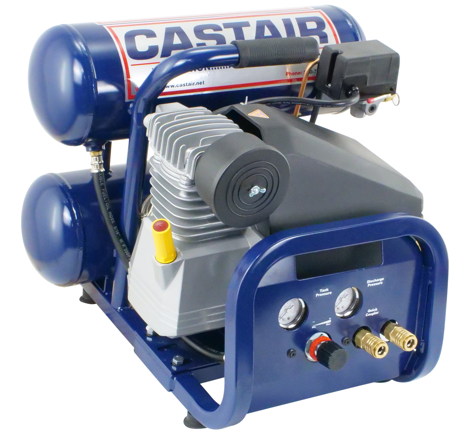

| 1.5 | 115/1/12 | 4/ Twin Stack | 9.9 | 4.6 | 1725 | 19x19x19 | 75 | D1514T20 |
SINGLE STAGE 125psi – BELT DRIVE – OIL LUBED – GAS
FEATURES
- Paper filter/silencers provides clean air and quiet operation.
- Finned copper discharge tube for strength & increased heat dissipation.
- With independent connecting rod, wrist pin and 3 piston rings.
- Easy to read sight glass to insure proper oil level at a glance.
- Gas units have head unloaders-VS-dump valves for better cooling & less load on engine in unloaded mode.
- Ball bearings at both ends of crankshaft for less friction.
- Powder coated ASME tank & safety valve installed.
- V-Cylinder design for 360 deg. cooling & long life.
- Smooth reliable Honda engines throttle control.
| Engine Model | Engine Make | Tank Gal/Type | C.F.M. @ 0-PSI | C.F.M. @ 100 PSI | Pump R.P.M. | LxWxH Dimension | WT. Shipped | Unit Model |

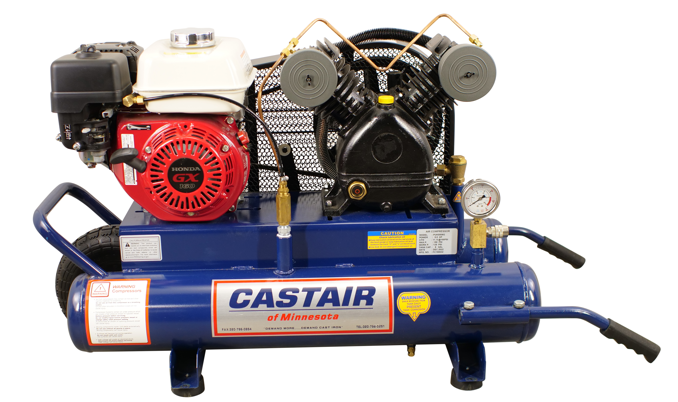

| GX160 | Honda | 8/ twin tank | 18.6 | 11.6 | 1380 | 38x18x26 | 185 | PUK5508G |
| GX160 | Honda | 20/ portable | 18.6 | 11.6 | 1380 | 33x18x33 | 195 | PUK5520G |

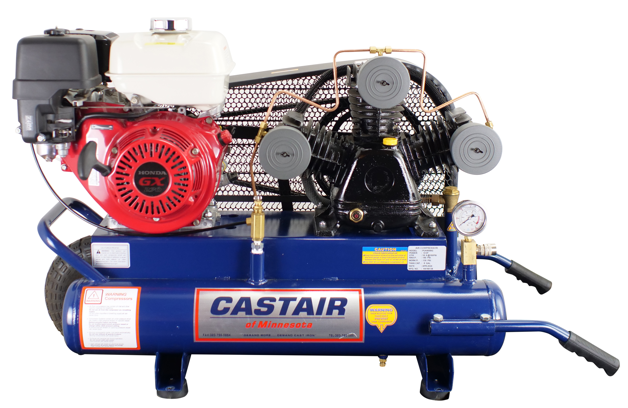

| GX270 | Honda | 8/ twin tank | 23.9 | 18.6 | 1380 | 42x18x28 | 250 | PUK9008G |
| 2 Elec. | 115/1/15 | 8 twin tank | 10.4 | 6.5 | 1380 | 38x18x26 | 150 | C218T50U |
